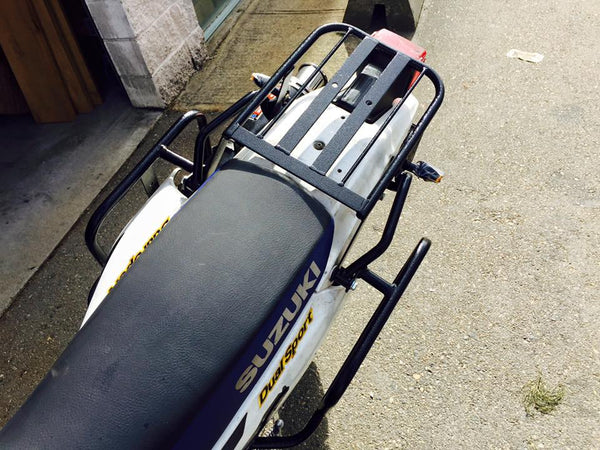

Pannier mounting rack for Suzuki DR650 dual sport motorcycles.Multi use rack.

Mount your own ammo can, Pelican case, aluminum panniers or any luggage with this rack.

Use it with any soft luggage like wolfman,nelson riggs and similar bags.

Mount rotopax gas cans on both sides.

Made of 3/4 inch steel tube construction, powder coated finish. Brackets included to mount your own case.

Easy bolt-on installation.

Features

Powder coated finish

Made from 3/4 inch steel tubing

Easy bolt on installation

Turn signal does not need to be relocated

Comes with the mounting brackets and bolts to mount your own case

Installation

How to install the cases on the racks

install the racks on the bike and hold up the cases to the rack.mark the location with a sharpie

remove the racks from the bike

place the racks on the back of the cases,make sure they are symmetrical

place the mounting brackets in place 2 at the bottom and 1 up in the middle

drill the holes for the brackets,bolt on the brackets

drill 2 more holes thru the 2 welded nuts,make sure that you do not damage the threads

remove the rack from the case and drill these 2 holes again with a bigger drill,about 3/8

make sure the m8x25mm knobs fit thru

install the rack on the bike and hang the cases on the rack

install the knobs from the inside of the case,hand tighten only to secure the case to the rack use a washer

remove the upper bolt from the passenger footpeg bracket

remove the front and rear bolt from passenger grab bars

install the pannier rack on the outside of the grab handle with the 40 mm bolt and 25mm bolt

install the 25 mm bolt with washer at the footpeg bracket

install the other side

install the rear connecting bar with the 2 x25 mm bolts

tighten all bolts

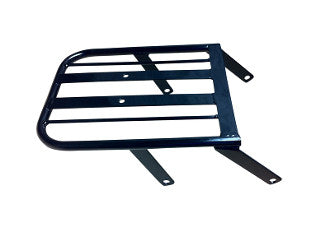

Suzuki DR650 Rear Luggage Rack With RotopaX Mount Function
