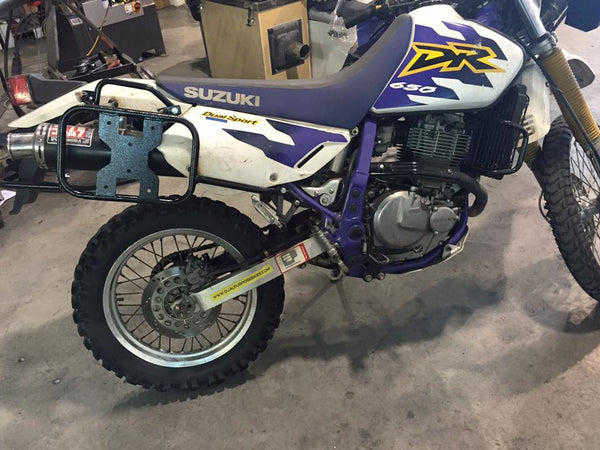

Pannier Mounting Rack for Suzuki DR650

Multi-Use Rack:
Perfect for adventure riders who need flexibility.

• Mount ammo cans, Pelican cases, aluminum panniers, or custom luggage.

• Compatible with soft luggage like Wolfman, Nelson-Rigg, and similar brands.

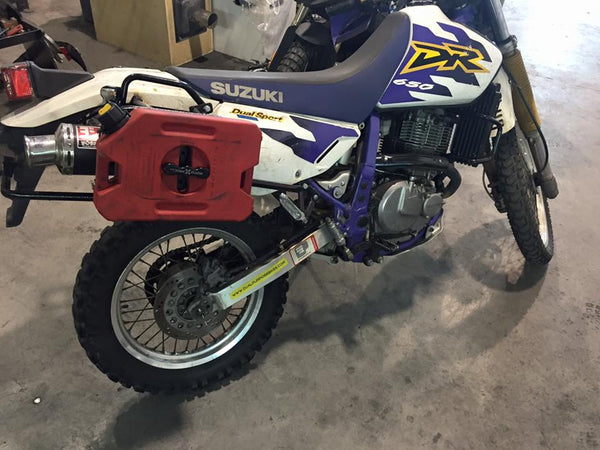

• Mount Rotopax gas cans on both sides.

• 3/4-inch steel tube construction with durable powder-coated finish.

• Easy bolt-on installation – no signal relocation needed.

• Includes mounting brackets and bolts for your own case setup.

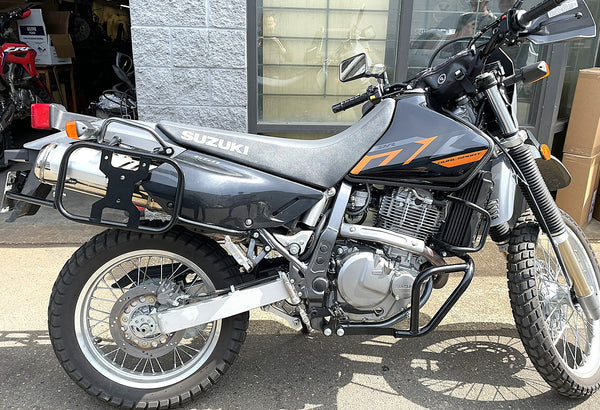

Key Features

• Heavy-duty 3/4" steel tubing

• Powder-coated for extra durability

• No need to relocate turn signals

• Comes complete with mounting brackets and hardware

• Quick and easy bolt-on installation

Installation Instructions

Mounting Your Cases:

1. Install the pannier racks on the motorcycle.

2. Hold the cases up to the rack and mark mounting points with a Sharpie.

3. Remove the racks from the bike.

4. Place the racks against the back of the cases, ensuring symmetry.

5. Position mounting brackets:

   • Two at the bottom

   • One centered near the top

6. Drill holes for the brackets and bolt them on.

7. Drill two additional holes through the welded nuts (be careful not to damage the threads).

8. Remove the rack from the case and enlarge these two holes to approximately 3/8" for M8x25mm knobs.

9. Reinstall the rack on the bike.

10. Hang the cases on the rack.

11. Insert knobs through the inside of the case with washers and hand-tighten to secure.

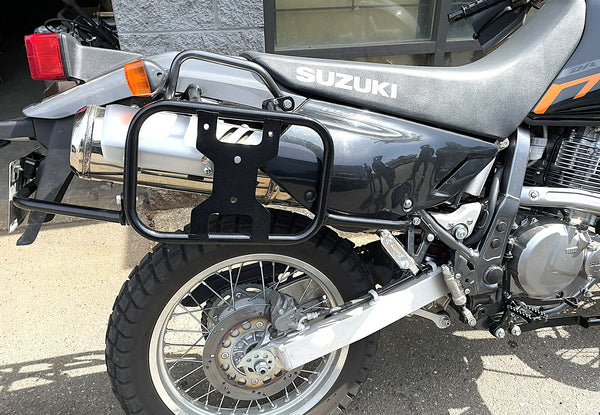

Mounting the Rack:

1. Remove the upper bolt from the passenger footpeg bracket.

2. Remove the front and rear bolts from the passenger grab bars.

3. Mount the pannier rack:

   • Use the 40mm bolt and 25mm bolt to attach to the grab handle.

   • Use a 25mm bolt with washer at the footpeg bracket.

4. Repeat on the other side.

5. Attach the rear connecting bar using two 25mm bolts.

6. Tighten all bolts securely.
